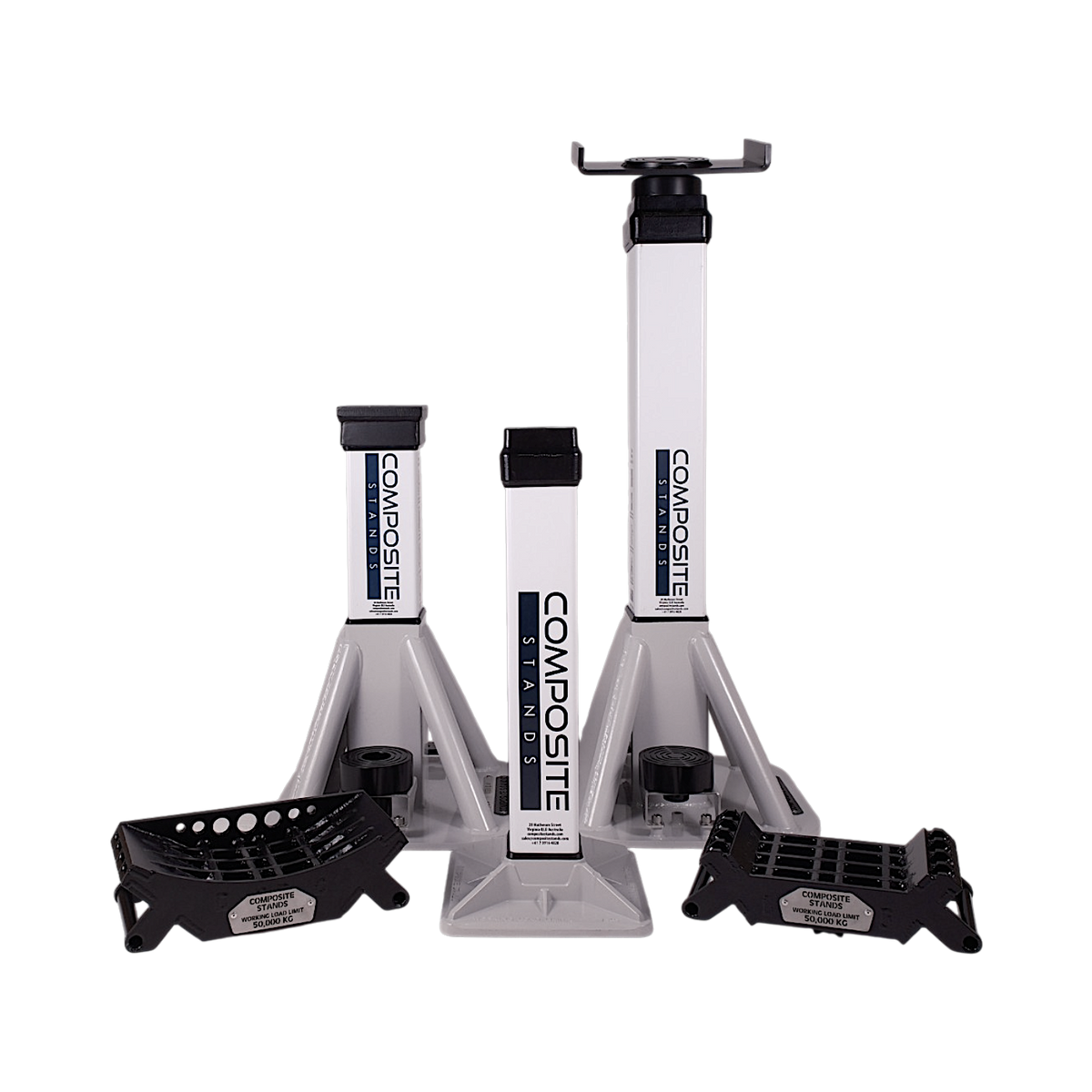

CAT D10/D11 | Combo Package

Featuring an offset base for track grouser clearance, it provides a practical alternative to traditional heavy steel stands, helping reduce manual handling and line-of-fire risks, simplify setup and improve efficiency during large dozer maintenance and support activities. Lightweight by design, it can be deployed by one person using the purpose-designed placement trolley, helping reduce the need for forklifts and unnecessary equipment handling.

• 25t (25,000kg) Working Load Limit stands for blade and push arm support with die-cast, CC401 aluminium, 300mm sq base
• 50t (50,000kg) Working Load Limit stands for dozers with laser cut, fabricated steel, 500mm sq base
• Corrosion resistant powder coating
• 10 year UV vinyl wrap on composite columns

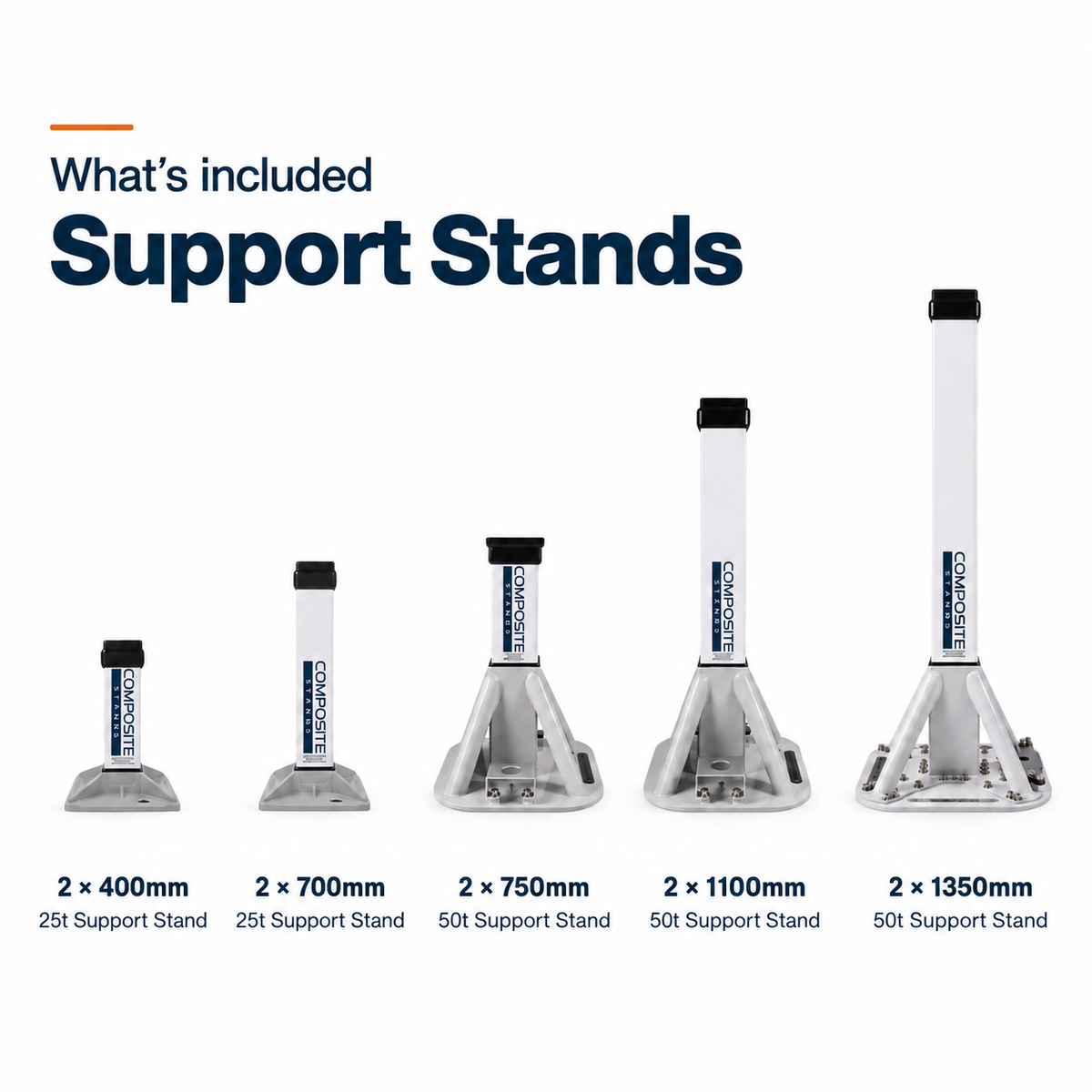

25t Support Stands

Blade Stands | Arms Removed

• 2 x 450mm | 14kg | SRC100-SR750-SR45025
• 2 x Spigot Insert | 5kg | CPS-025-023-011

Push Arm Support | Blade Attached

• 2 x 700mm | 15.5kg | SRC100-SR750-SR70025
• 2 x Swivel Wing Insert | 7kg | SRC-Swivel Wing
• 1 x 5S Storage Board | 20kg | SS-002

50t Support Stands

Machine Stands

• 2 x 750mm | 60kg | DZ-50-750
• 2 x 1100mm | 65kg | DZ-50-1100

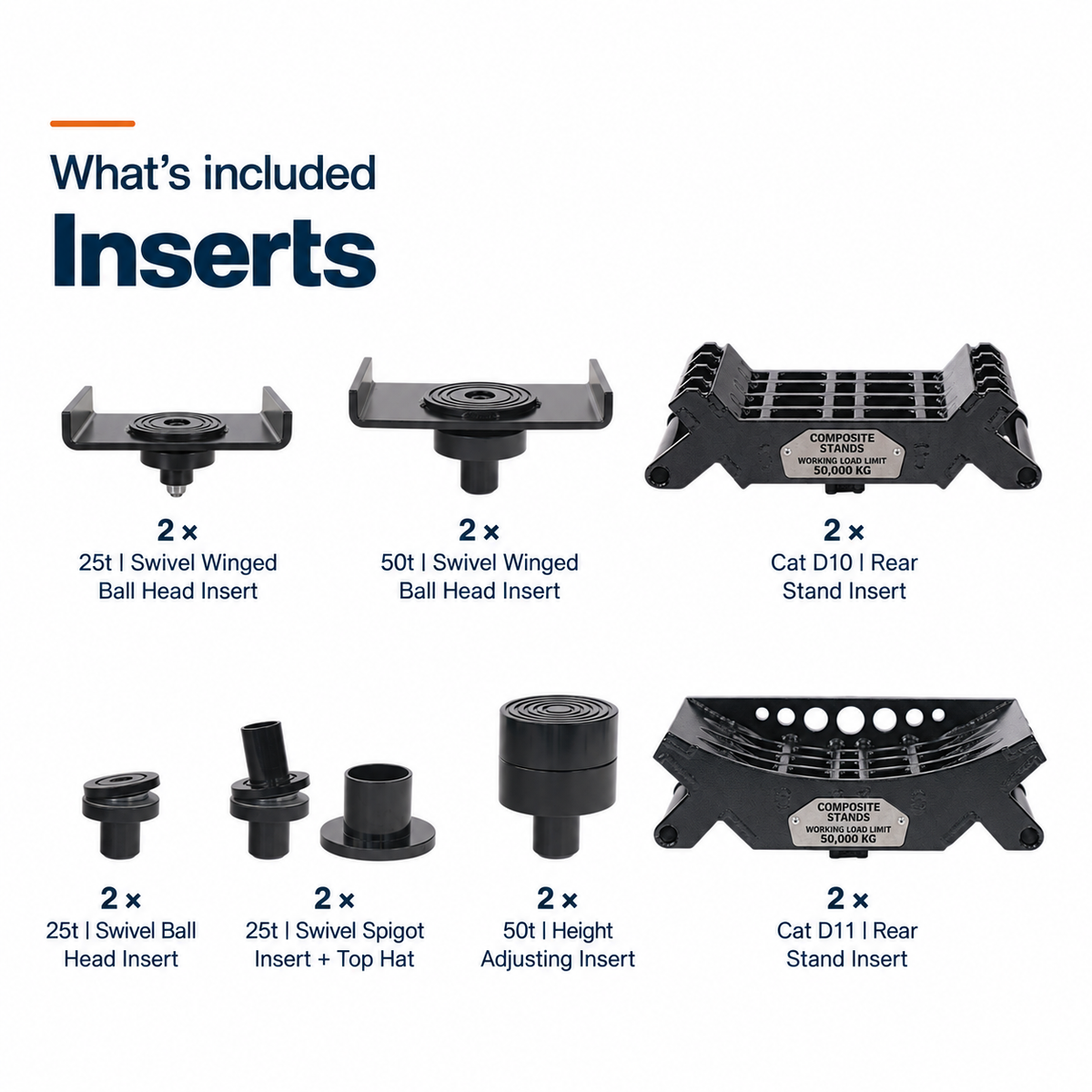

• 2 x CAT D11 Rear Insert | DZ-RI-D11
• 2 x CAT D10 Rear Insert | DZ-RI-D10
• 2 x 100mm Insert | 10kg | 125I-100-R
• 4 x Adapter | 1.6kg | DZ-TAP

G.E.T. Maintenance Stands

• 2 x 1350mm | 68kg | CS-50-1349
• 2 x T3 Swivel Wing Insert | 9kg | CPS-025-024-005

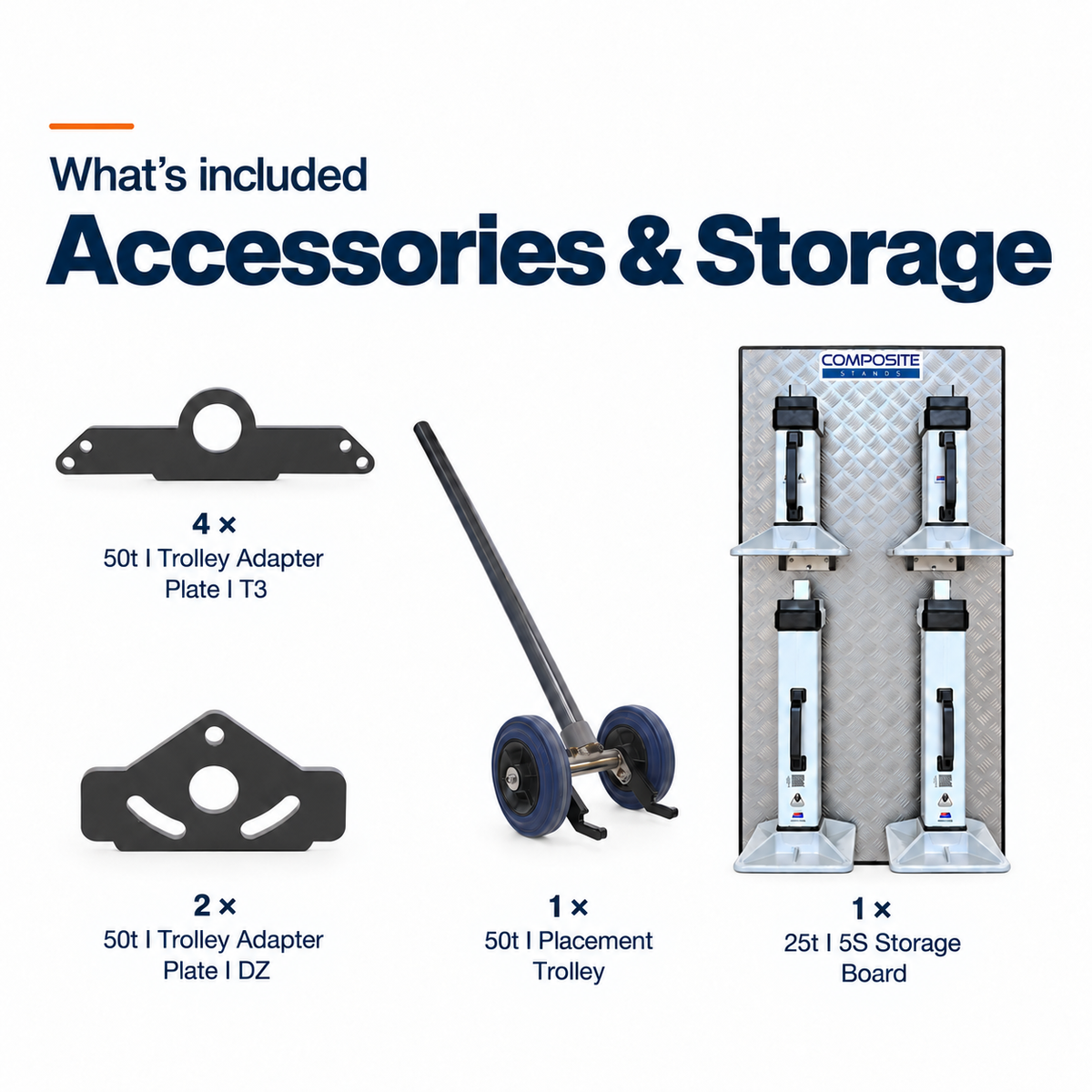

• 1 x Placement Trolley | 6kg | Trolley
• 1 x Trolley Storage Hook | 1kg | CPS-025-017-033
• 2 x Adapter | 2kg | DZ-TAP

N.B. Interchangeable height adjusting inserts available. Inserts sold separately.
