Before using Composite Stands, read the operating manual and complete a pre-use inspection. As with all support stands, inspection should be completed before each use in accordance with applicable standards. Operators should understand the product, application, load rating, working height, approved accessories and correct setup before use.
01

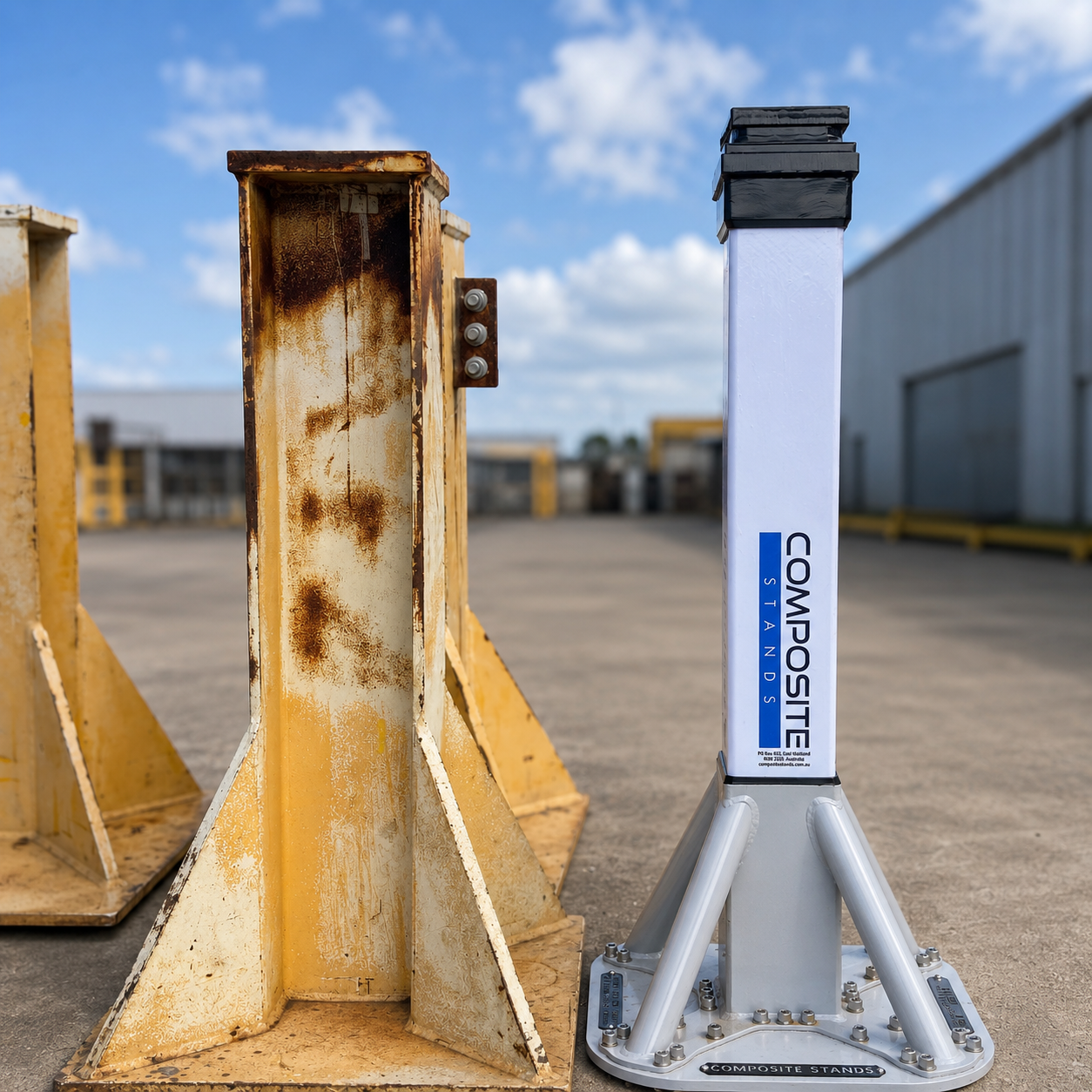

Select the right stand
Check the stand label to confirm the Working Load Limit (WLL) and Maximum Working Height (MWH) are suitable for the load being supported.
02
Use a stable surface
Only use support stands on a flat, hard, level surface capable of sustaining the full load.
03

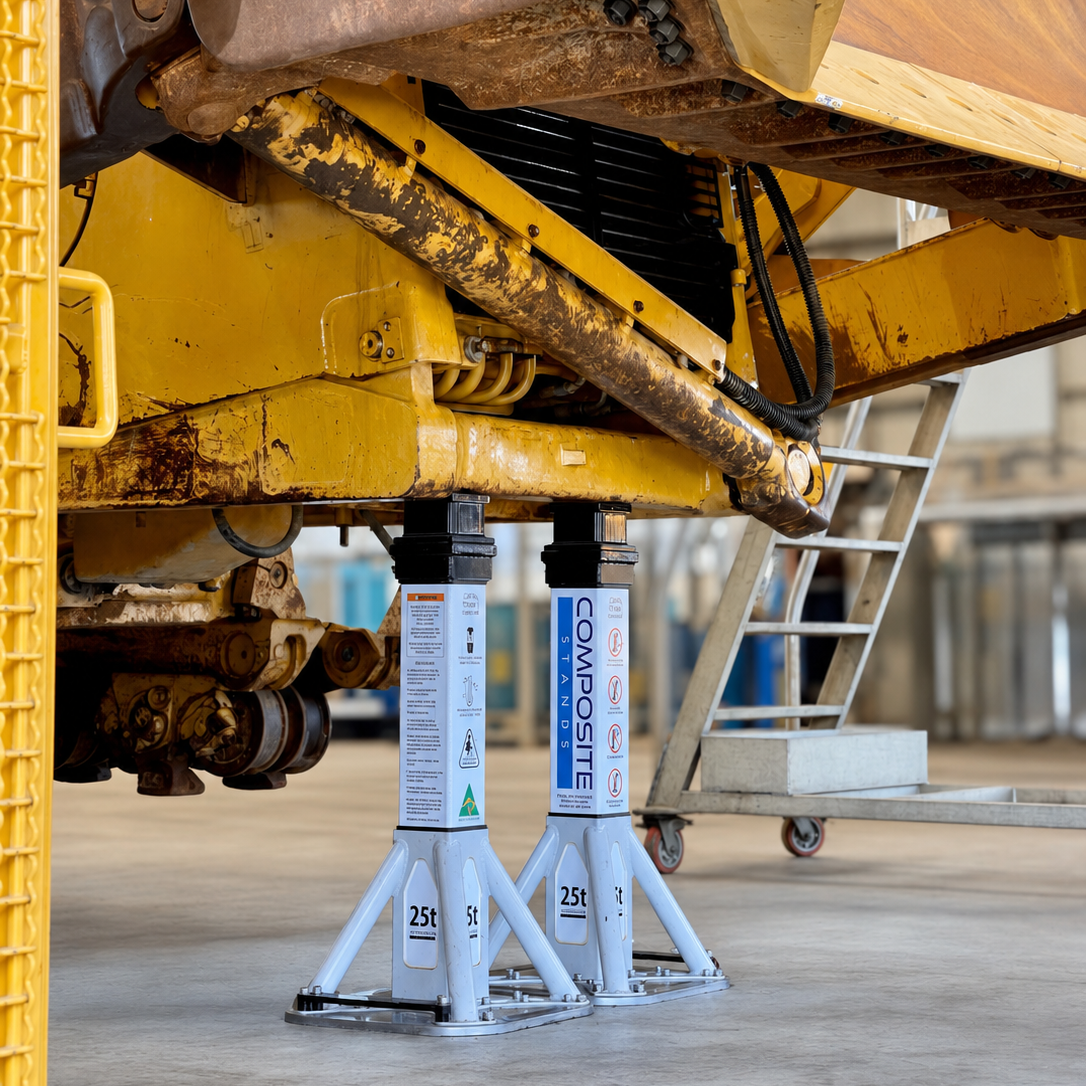

Use support stands in pairs
Use support stands in pairs when supporting loads to help ensure the setup is stable, balanced and suitable for the application.
04
Keep out of the line of fire
Never get under an unsupported load. Use the positioning attachment or placement trolley to help place and retrieve stands while keeping personnel clear of the load.
Composite Stands are designed to be durable and robust in industrial environments. As with all support stands, a pre-use inspection should be completed before each use. If a stand is subject to unusual conditions, such as impact or exposure to hot work, it should be checked carefully before use. The examples below show visible signs to look for during inspection.
01

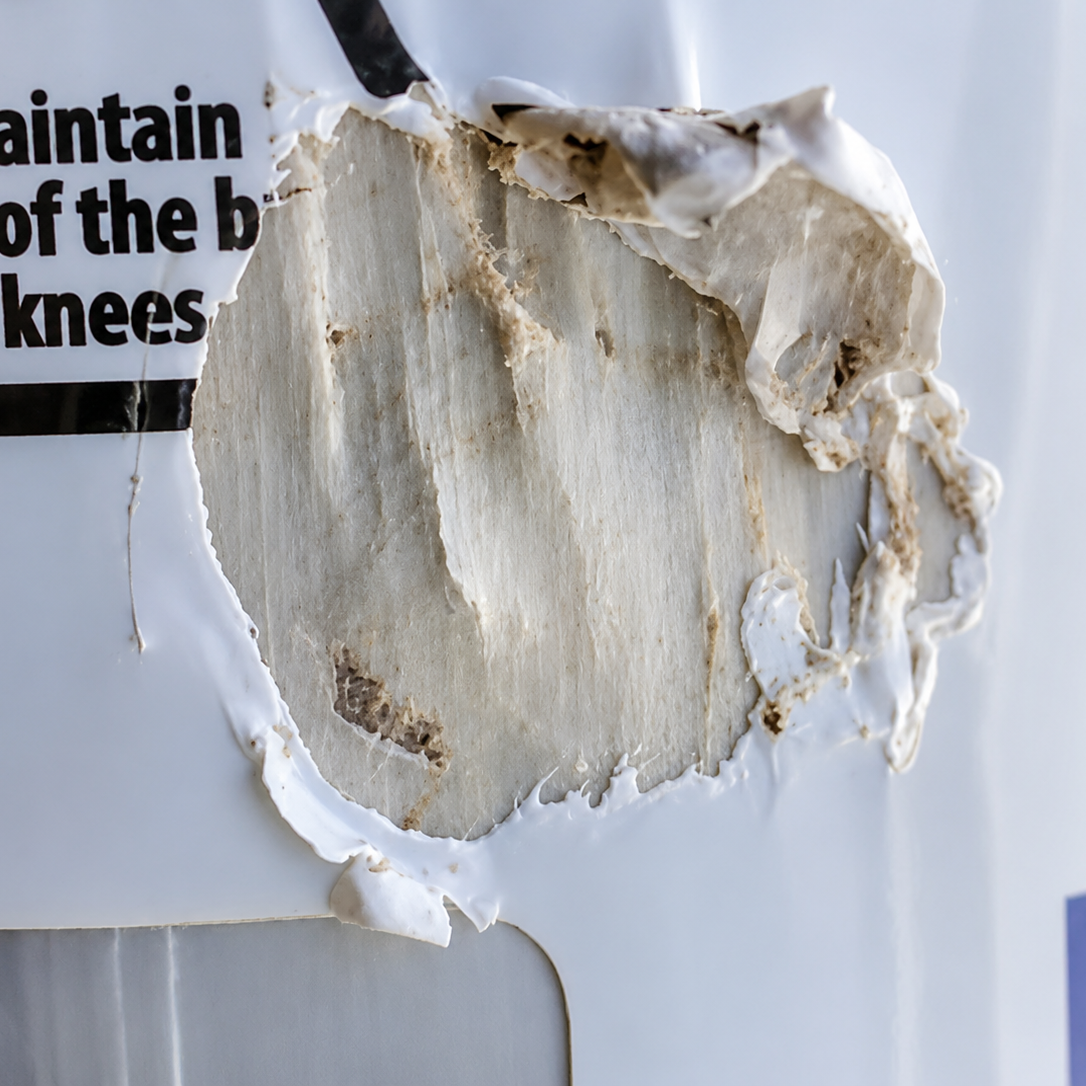

Check for impact damage
During inspection, check for missing vinyl, splitting, delamination, impact marks or damage around the composite column and label.
02

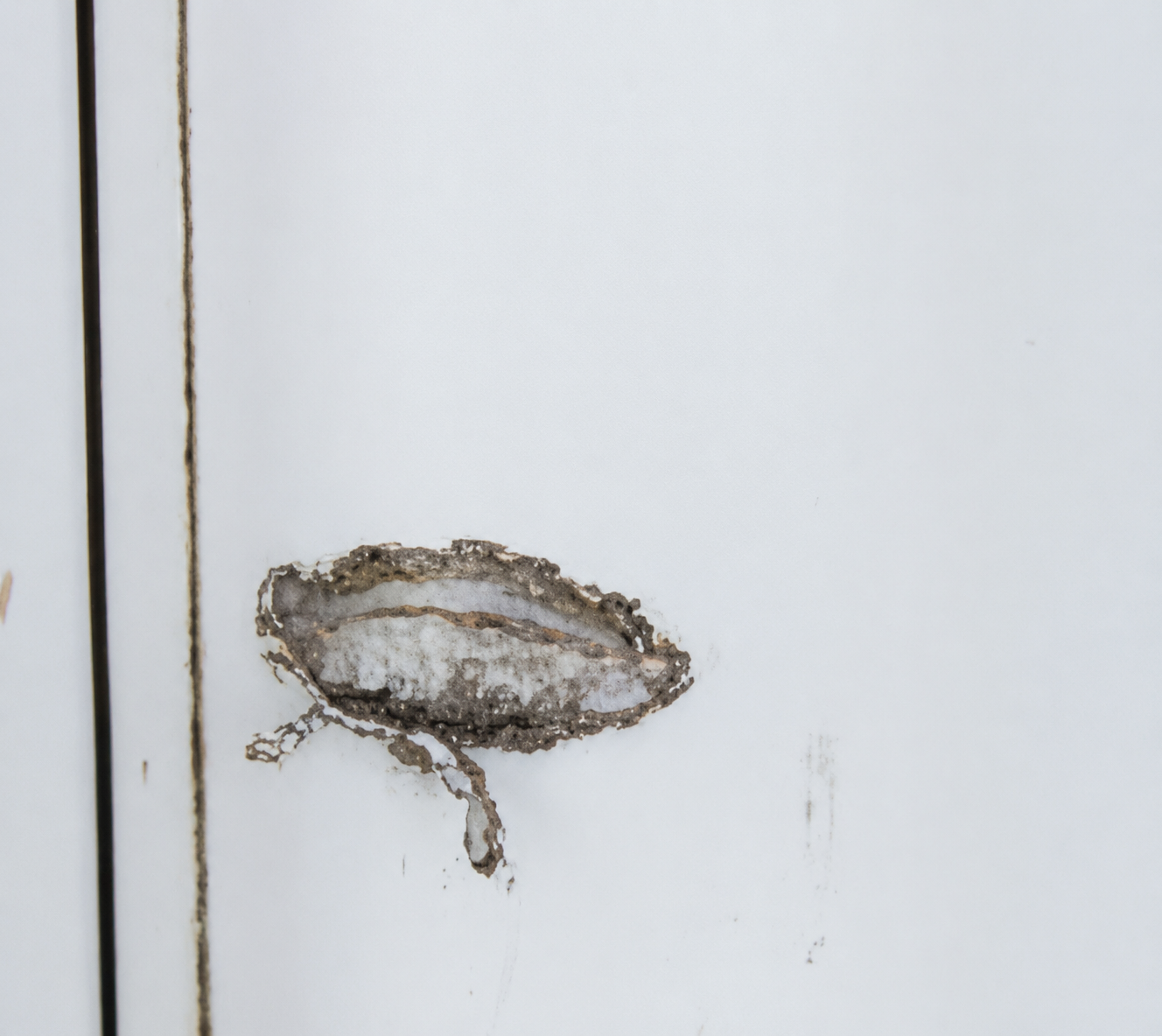

Concentrated damage
Look for deep cuts, gouges, punctures or sharp impact marks in one area of the composite column. Damage greater than 1mm should be referred for review before use.
03

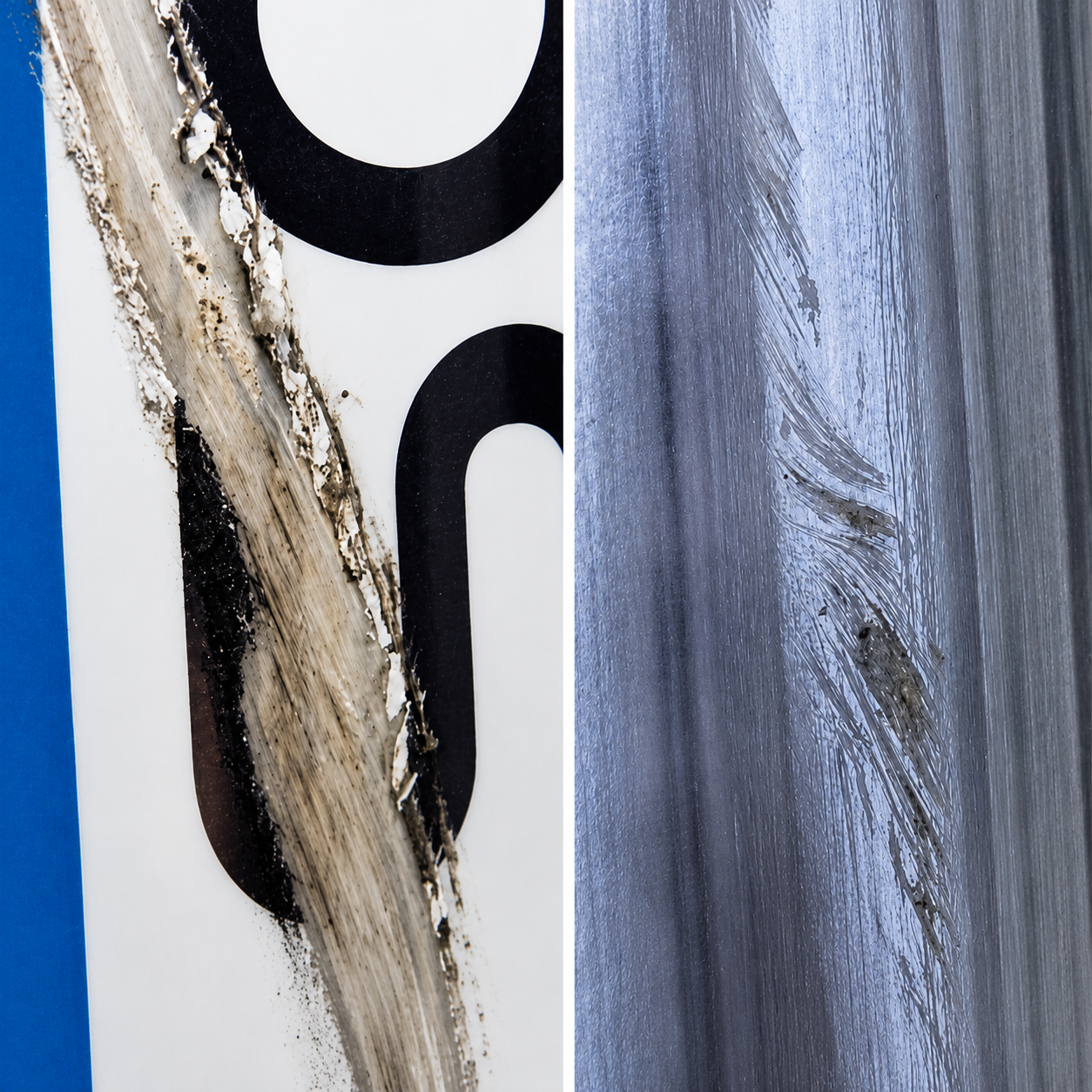

Assess the column
Impact damage to the vinyl label can look significant. Once the label is removed, the composite column can be properly assessed. If the column damage is minor and no delamination is present, the label may be replaced and the stand returned to service.
04

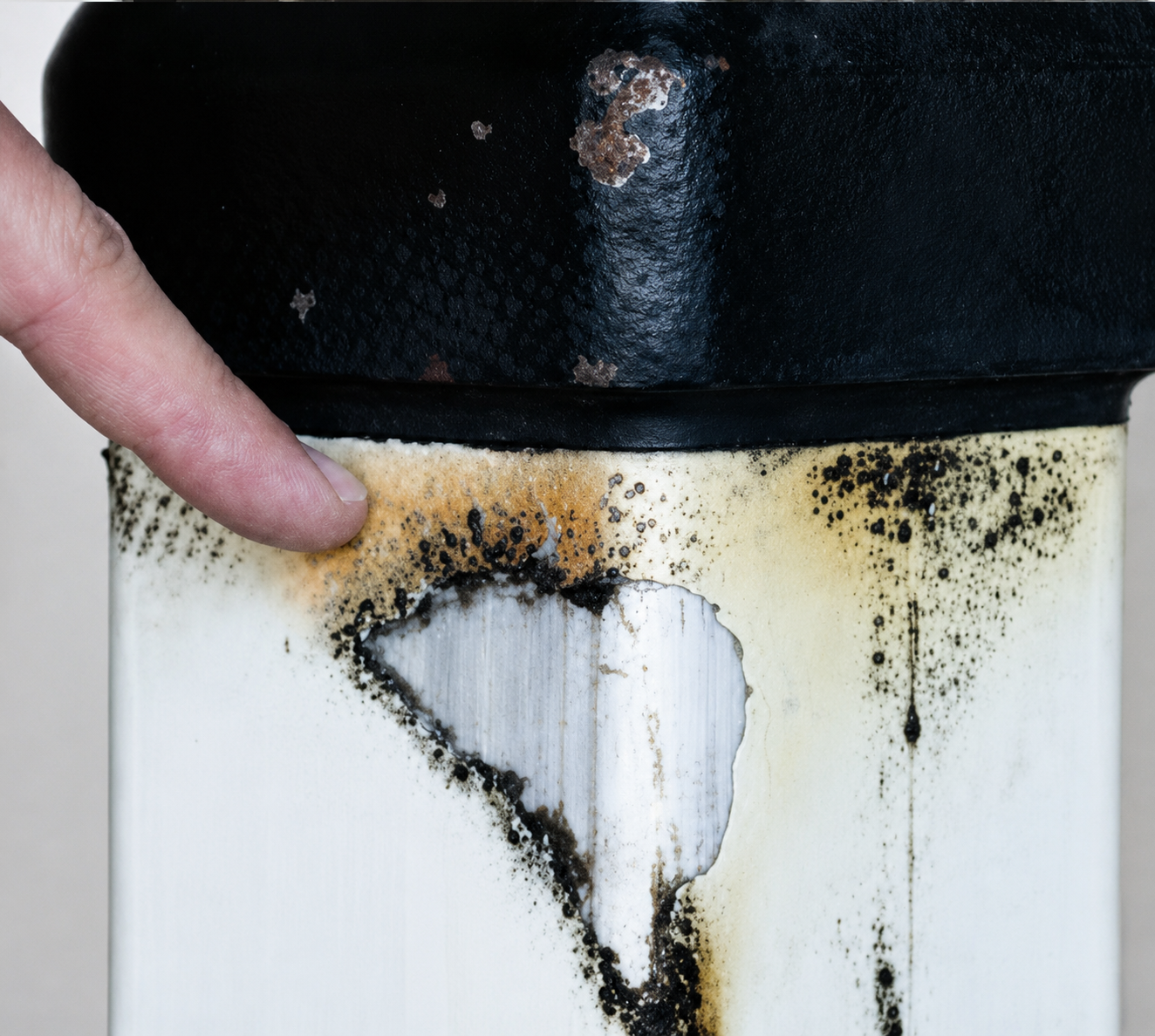

Protect from hot work
Use a heat blanket when welding, cutting or grinding near Composite Stands to help prevent heat damage.
Need help with your stands?
Contact the team for help with product use, inspection questions, maintenance guidance, warranty enquiries or after-sales care.
