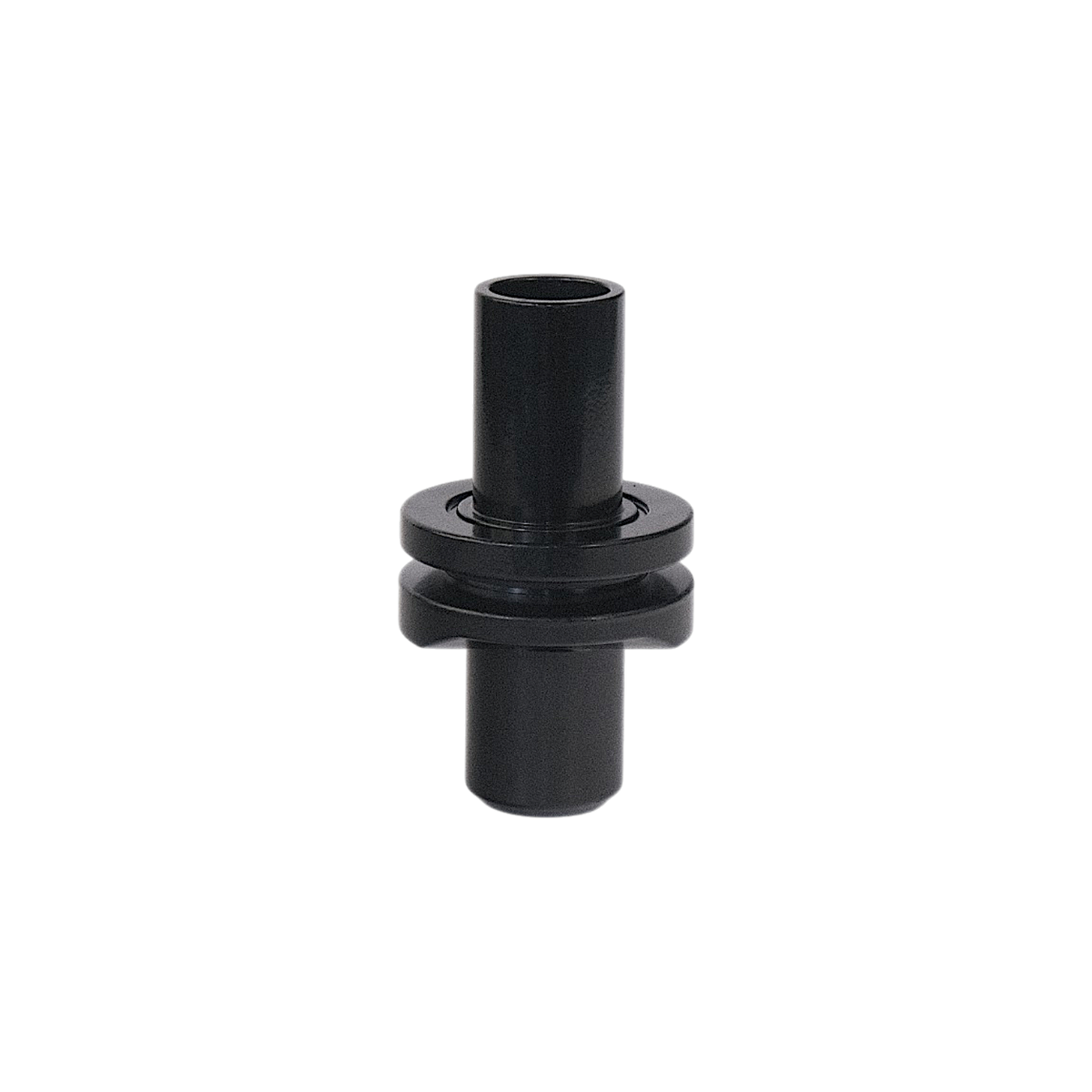

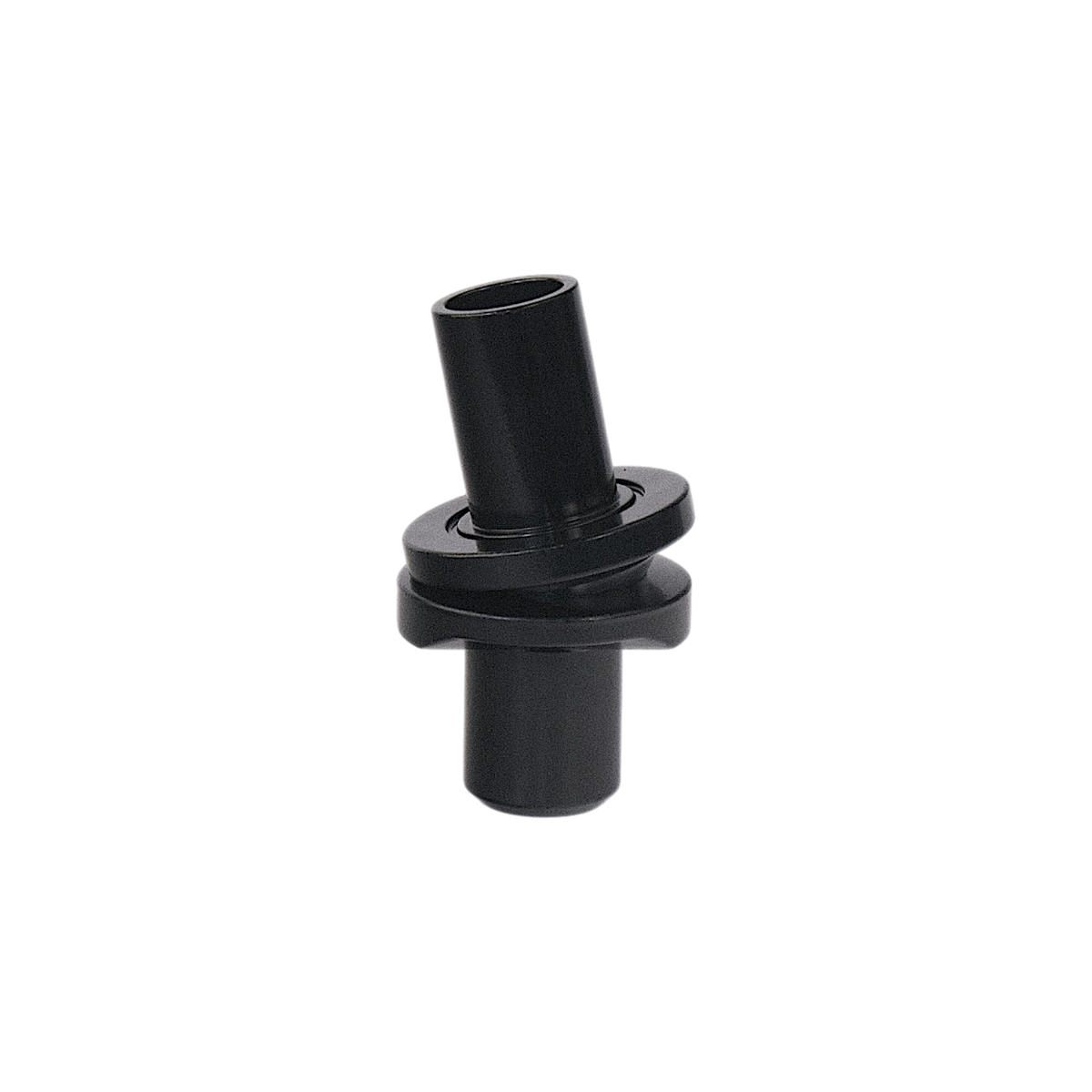

Swivel spigot head insert that suits a 15-tonne Composite Stand
Swivel spigot head insert that suits a 15-tonne Composite Stand

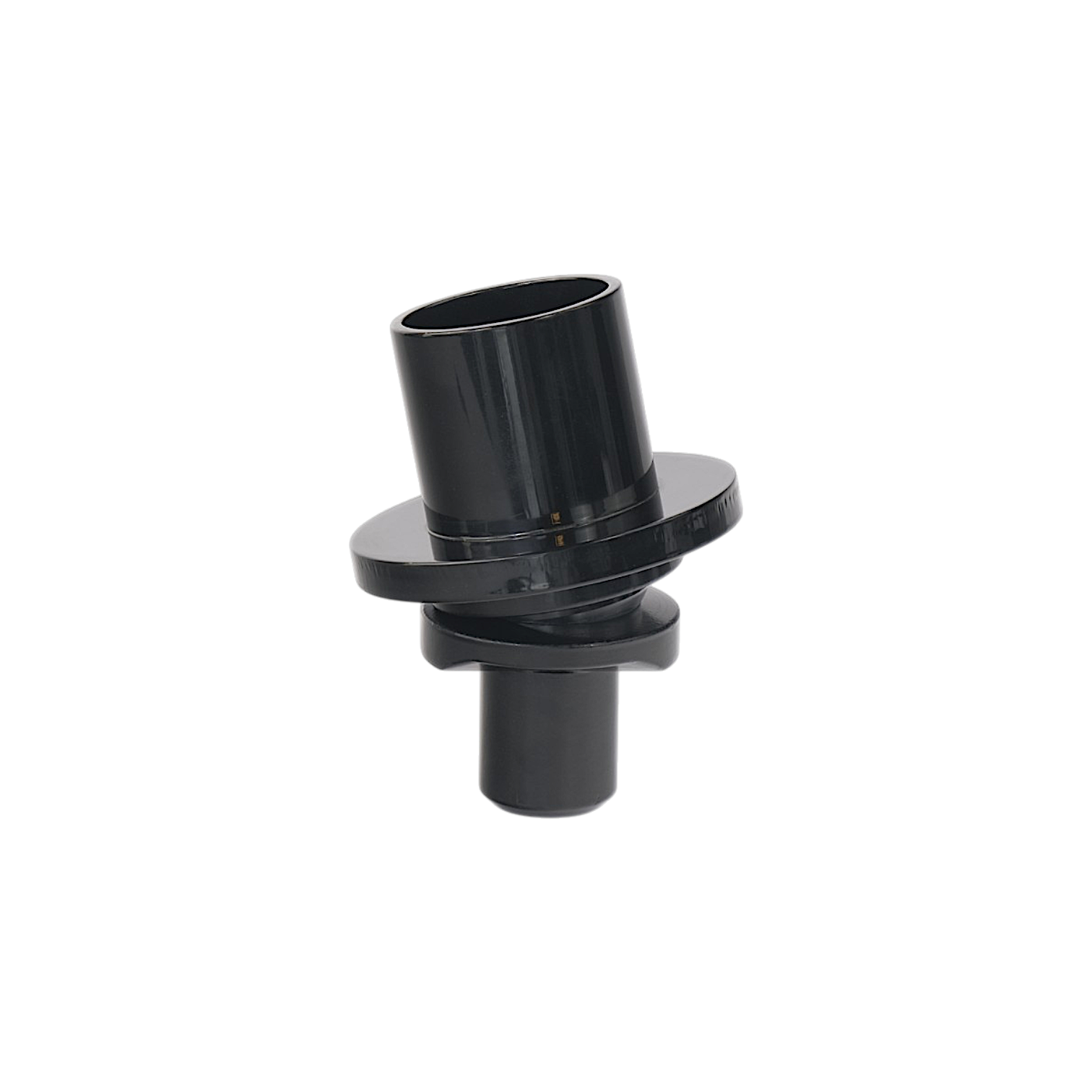

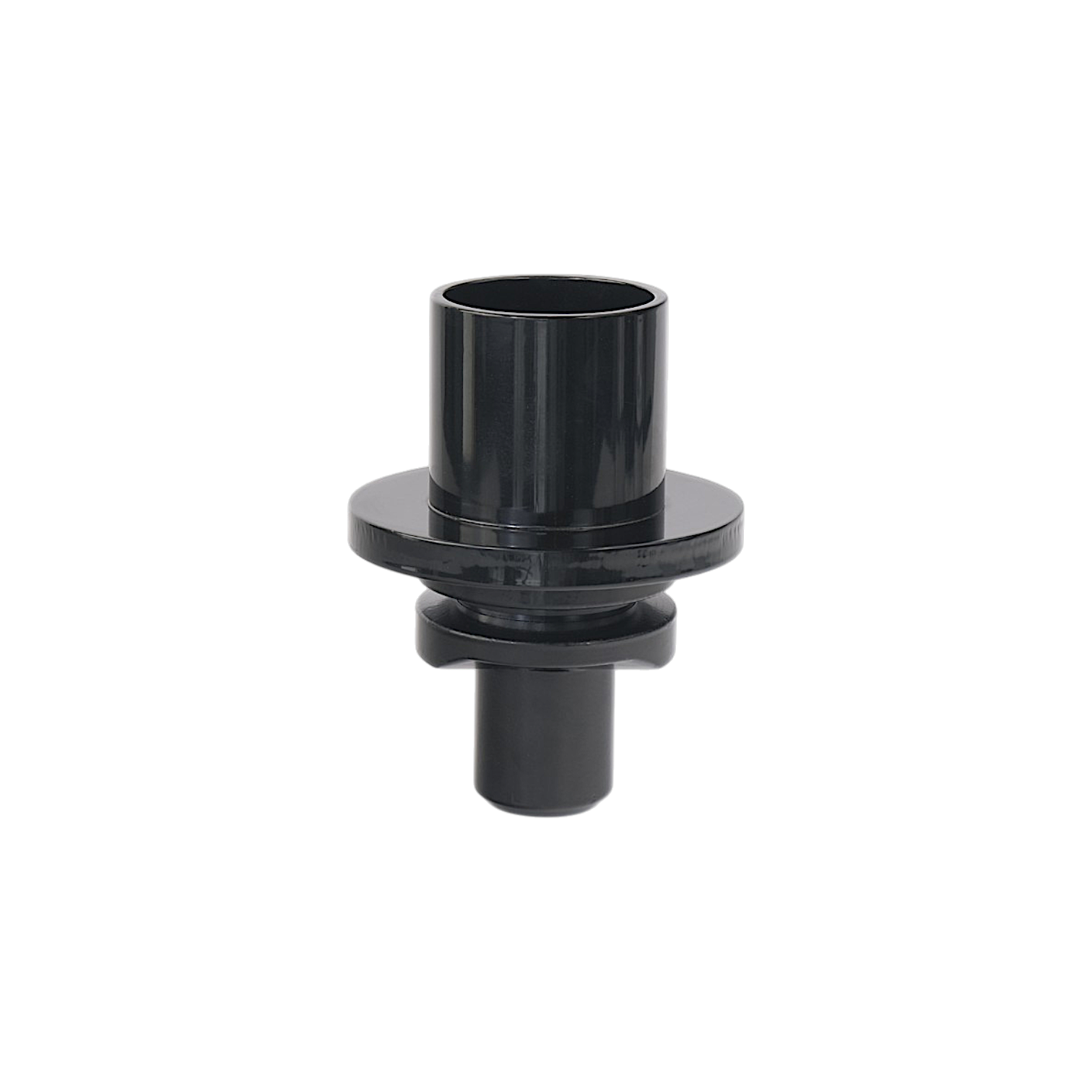

Top hat adapter and 15t swivel spigot insert
Top hat adapter and 15t swivel spigot insert
15t Composite Stand with spigot insert supporting heavy equipment blade attachments in storage
Swivel spigot head insert that suits a 15-tonne Composite Stand
Swivel spigot head insert that suits a 15-tonne Composite Stand
Top hat adapter and 15t swivel spigot insert
Top hat adapter and 15t swivel spigot insert
15t Composite Stand with spigot insert supporting heavy equipment blade attachments in storage
Inserts

15t | Swivel Spigot Insert

The 15t Support Stand, fitted with a Swivel-Spigot Insert, supports a detached D10 blade at the draft arm contact point. For D11 blade storage, the Swivel-Spigot Insert, with the Top Hat Adaptor fitted on top, increases the pin and landing surface size to suit the blade.

Variant SKU Weight
D10 | Swivel Spigot Insert RV-Swivel-Spigot 3.3 kg
D11 | Swivel Spigot Insert + Top Hat RV-Swivel-Spigot-Top-Hat 6.1 kg

• 15t (15,000kg) Working Load Limit
• CNC machined solid steel engagement head
• Corrosion resistant powder coating
• Easy maintenance swivel design

N.B. The swivel spigot insert attachment DOES NOT fit in the height adjusting inserts and you may ONLY place either one or the other in the cap of the support stand.
